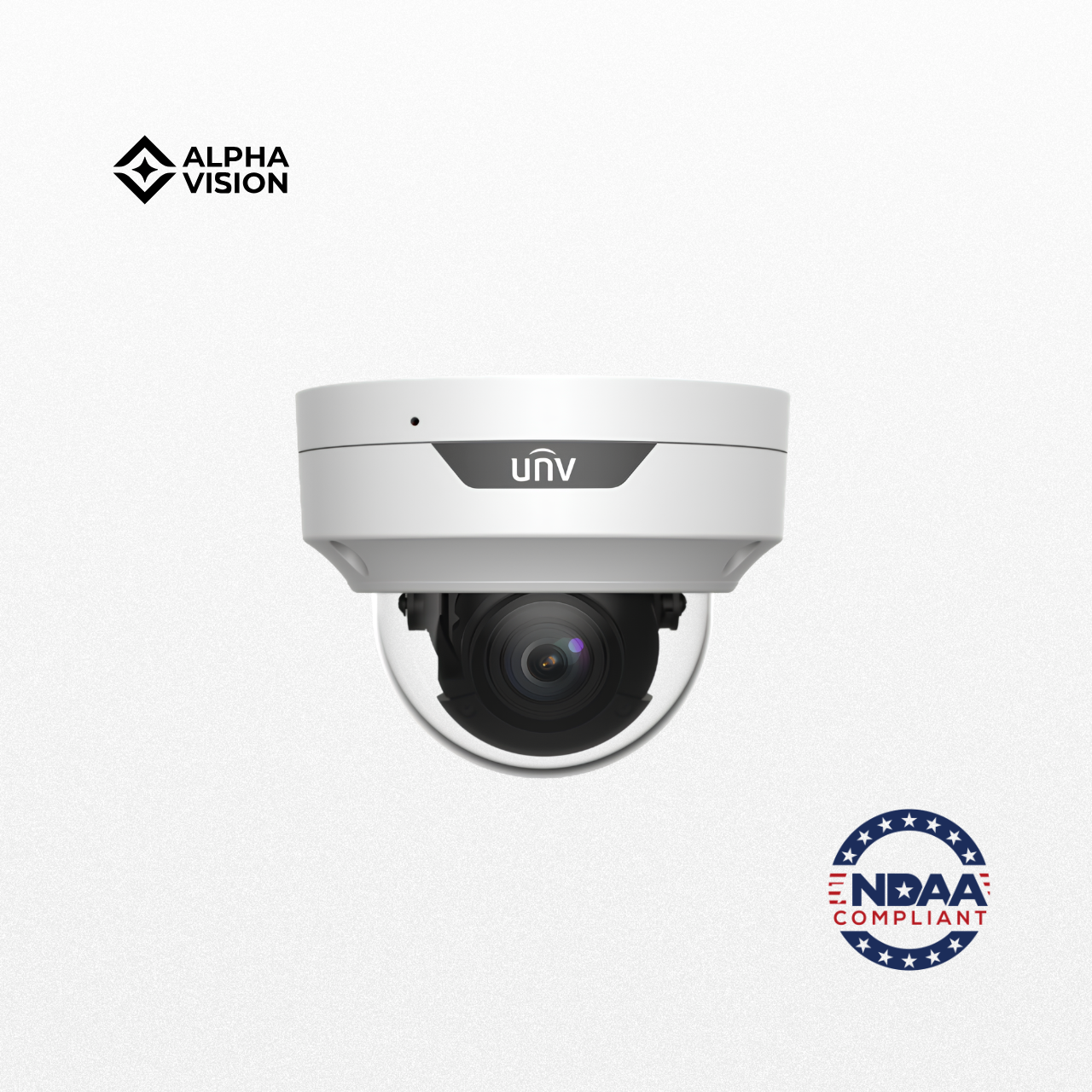

The Uniview IPC3534SR4-ADZK-H is a high-performance 4 MP motorized varifocal IR dome network camera engineered for reliable video surveillance in both indoor and outdoor settings. Equipped with a 1/3″ CMOS sensor and a 2.8–12 mm motorized lens, it delivers crisp, detailed imaging up to 2688 × 1520 resolution with flexible field-of-view adjustment. Advanced imaging technologies like 120 dB True WDR and Smart IR provide clear footage in strong backlight and low-light conditions with night vision up to 40 m (131 ft). Durable IP67 weatherproof and IK10 vandal-resistant housing make it well-suited for commercial and industrial environments, while PoE support simplifies installation with power and data over a single cable. Enhanced usability features include 9:16 corridor mode, built-in microphone, edge storage support, and compatibility with ONVIF-compliant recorders and video management systems.

FAQs for

Does this camera require an NVR?

An NVR is recommended for centralized recording and management. The camera also supports microSD storage (up to 256 GB) for backup recording.

Is this camera suitable for outdoor use?

Yes. It features an IP67 weatherproof and IK10 vandal-resistant housing for reliable outdoor operation.

Does it support night vision?

Yes. Smart IR provides clear night vision up to 40 m (131 ft).

Can the lens be adjusted remotely?

Yes. The motorized 2.8–12 mm varifocal lens allows remote zoom and focus.

Does it support PoE?

Yes. It supports PoE (IEEE 802.3af) for power and data over a single Ethernet cable.

Tech Specs for

Image Sensor: 1/3″ Progressive Scan CMOS

Maximum Resolution: 4 MP (2688 × 1520)

Frame Rate: Up to 25 fps at 4 MP

Lens: Motorized Varifocal 2.8–12 mm

Field of View (H): ~86.3°–35.2°

Wide Dynamic Range: 120 dB True WDR

Night Vision: Smart IR up to 40 m (131 ft)

Video Compression: Ultra 265, H.265, H.264, MJPEG

Corridor Mode: Yes (9:16)

Audio: Built-in Microphone

Edge Storage: MicroSD up to 256 GB

Network: RJ45 Ethernet, PoE (IEEE 802.3af)

Weatherproof Rating: IP67

Vandal Resistance: IK10

Operating Temp: –30 °C to 60 °C (–22 °F to 140 °F) (typical)

Protocols: ONVIF S/G/T, TCP/IP, DHCP, RTSP, HTTPS, and more

Dimensions: Approx. Ø128 × 100 mm

Mounting: Ceiling/Wall with 3-axis adjustment
