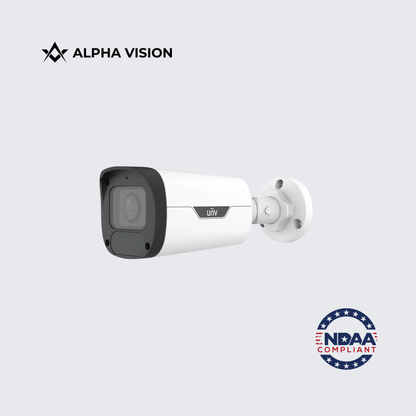

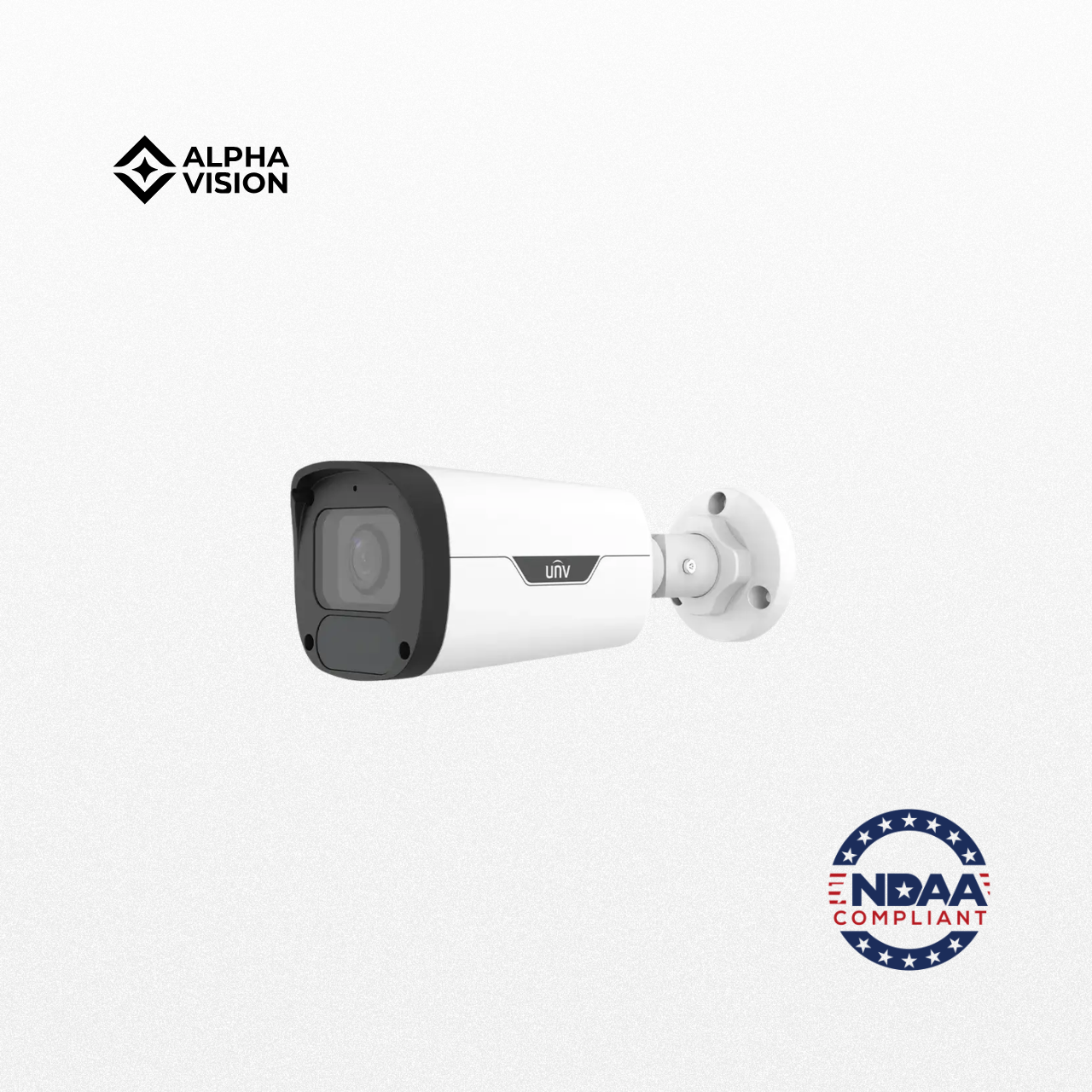

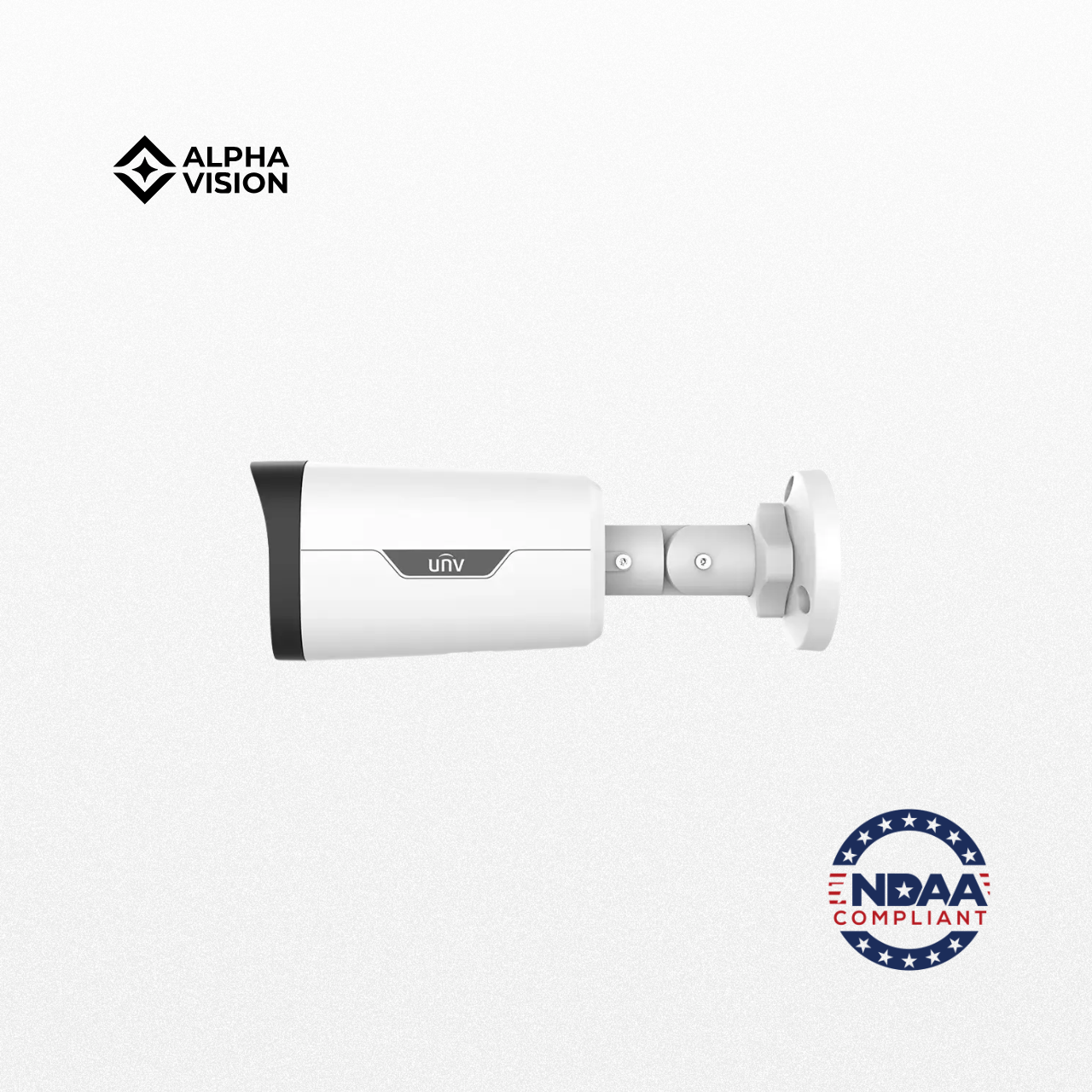

IPC2324SR5-ADZK-H | Uniview 4MP Bullet IP Camera, 2.8–12mm Motorized Lens
IPC2324SR5-ADZK-H | Uniview 4MP Bullet IP Camera, 2.8–12mm Motorized Lens

Alpha Vision

IPC2324SR5-ADZK-H | Uniview 4MP Bullet IP Camera, 2.8–12mm Motorized Lens

$529.00 USD
Need help?

References

References and Documentation

Detailed Description

Uniview IPC2324SR5-ADZK-H is a high-performance 4MP HD IR varifocal bullet network camera delivering crisp, detailed video in any lighting condition. Featuring a motorized 2.8–12 mm lens, 120 dB True WDR, and Smart IR up to 50 m (164 ft), it captures clear footage in challenging light and complete darkness. Robust IP67 weatherproof housing and PoE support make it ideal for outdoor surveillance applications.

Key Benefits:

  • High-Resolution Monitoring: 4MP imaging for sharp, detailed video.

  • Flexible Motorized Lens: Remote zoom and focus adjustment for precise coverage.

  • Smart Night Vision: Up to 50 m IR range adapts to scene brightness.

  • True WDR: 120 dB WDR captures balanced images in high-contrast scenes.

  • Built-In Storage: MicroSD support up to 256 GB for local backup.

  • Durable Outdoor Design: IP67 rating for reliable operation in harsh environments.

FAQs for

Is this camera suitable for outdoor use?

Yes. The IPC2324SR5-ADZK-H is IP67-rated with a durable metal housing, making it suitable for outdoor and harsh weather environments.

Does this camera require an NVR?

An NVR is recommended for centralized recording and management. The camera also supports a microSD card (up to 256 GB) for local backup recording.

Does it support night vision?

Yes. The camera features Smart IR with up to 50 m (164 ft) night vision, automatically adjusting to prevent overexposure.

Can I adjust the zoom and focus remotely?

Yes. The built-in motorized 2.8–12 mm varifocal lens allows remote zoom and focus adjustments.

Does the camera support PoE?

Yes. It supports Power over Ethernet (IEEE 802.3af), allowing power and data through a single Ethernet cable. It also supports DC 12 V power.

Is the camera compatible with third-party systems?

Yes. The camera supports ONVIF Profiles S, G, and T, making it compatible with many third-party NVRs and VMS platforms.

Tech Specs for

Image Sensor: 1/3″ Progressive Scan CMOS

Maximum Resolution: 4 MP (2688 × 1520)

Frame Rate: Up to 25/20 fps (4MP)

Lens: Motorized Varifocal 2.8–12 mm

Wide Dynamic Range: 120 dB True WDR

Night Vision: Smart IR up to 50 m (164 ft)

Image Modes: 9:16 Corridor Mode

Video Compression: Ultra 265, H.265, H.264, MJPEG

Storage: MicroSD up to 256 GB

Power: PoE (IEEE 802.3af) / DC 12 V

Weatherproof Rating: IP67

Audio: Built-in microphone

Mounting: 3-Axis adjustment

Operating Temperature: -30°C to 60°C (-22°F to 140°F)

Network Protocols: ONVIF Profiles S/G/T, TCP/IP, RTSP, HTTPS

Dimensions: Approx. 206 × 73 × 73 mm

Weight: Approx. 0.51 kg
