IPC3634SR4-ADZK-H | Uniview 4MP Varifocal IR Eyeball Network Camera
IPC3634SR4-ADZK-H | Uniview 4MP Varifocal IR Eyeball Network Camera

Alpha Vision

IPC3634SR4-ADZK-H | Uniview 4MP Varifocal IR Eyeball Network Camera

$529.00 USD
Need help?

References

IPC3634SR4-ADZK-H | Uniview 4MP Varifocal IR Eyeball Network Camera References and Documentation

IPC3634SR4-ADZK-H | Uniview 4MP Varifocal IR Eyeball Network Camera Detailed Description

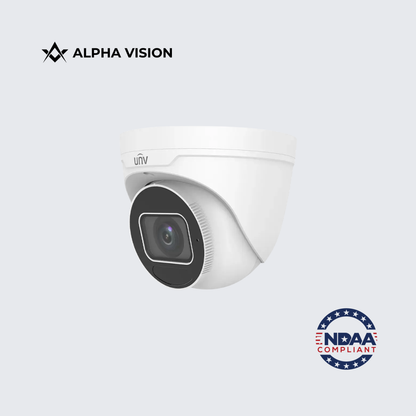

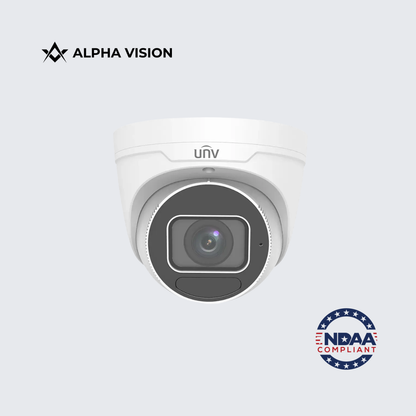

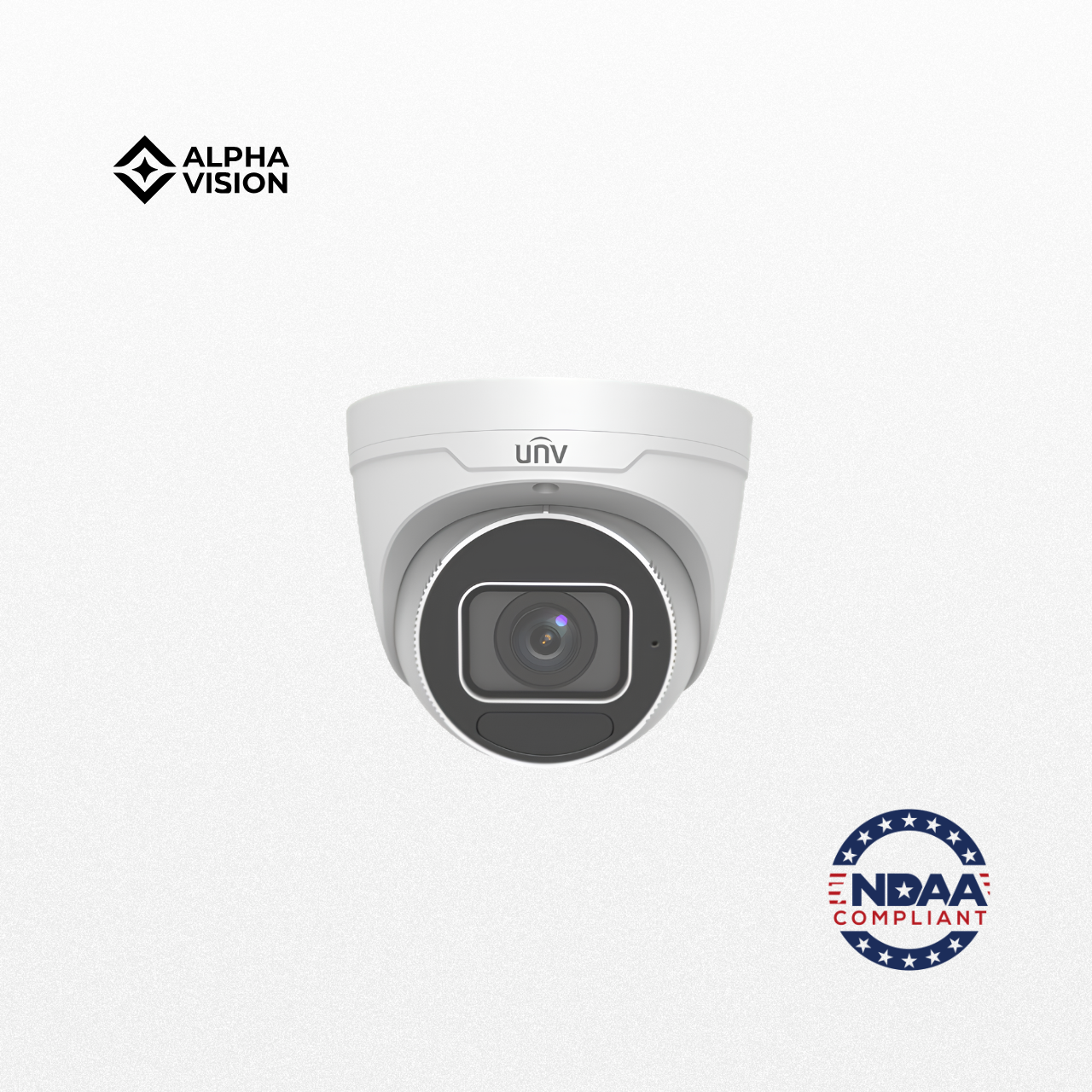

The Uniview IPC3634SR4-ADZK-H is a 4MP HD IR varifocal eyeball network camera designed for high-performance indoor and outdoor surveillance. Featuring a motorized 2.8–12 mm lens, true 120 dB WDR, Smart IR night vision, and IP67-rated protection, it delivers clear, reliable video in challenging lighting and harsh environments.

Key Features & Benefits

  • 4MP High-Resolution Imaging: Captures sharp, detailed video up to 2688 × 1520 for accurate monitoring and evidence.

  • Motorized Varifocal Lens (2.8–12 mm): Remotely adjust field of view for flexible coverage without manual re-aiming.

  • 120 dB True WDR: Maintains image clarity in scenes with strong backlight or high contrast.

  • Smart IR Night Vision: Provides clear visibility up to 40 m (131 ft) in complete darkness.

  • Edge Storage Support: MicroSD card slot supports up to 256 GB for local recording and redundancy.

  • Corridor Mode (9:16): Optimized vertical viewing for hallways and narrow spaces.

  • Built-In Microphone: Enables audio detection for enhanced situational awareness.

  • IP67 Weatherproof Rating: Durable metal housing for reliable outdoor operation in harsh conditions.

  • PoE Support: Simplifies installation with power and data over a single Ethernet cable.

FAQs for IPC3634SR4-ADZK-H | Uniview 4MP Varifocal IR Eyeball Network Camera

Does this camera require an NVR?

Yes. An NVR is recommended for full recording and management. The camera also supports microSD storage (up to 256 GB) for backup recording.

Is this camera suitable for outdoor use?

Yes. It features an IP67-rated, weatherproof metal housing for reliable outdoor operation.

Does it support night vision?

Yes. Smart IR provides clear night vision up to 40 m (131 ft) with automatic IR adjustment.

Can the lens be adjusted remotely?

Yes. The motorized 2.8–12 mm varifocal lens allows remote zoom and focus.

Does it support PoE?

Yes. The camera supports PoE (IEEE 802.3af) for power and data over a single cable.

Tech Specs for IPC3634SR4-ADZK-H | Uniview 4MP Varifocal IR Eyeball Network Camera

Image Sensor: 1/3″ Progressive Scan CMOS

Maximum Resolution: 4 MP (2688 × 1520)

Frame Rate: up to 30 fps

Lens: Motorized Varifocal 2.8–12 mm

Field of View: Adjustable via motorized zoom

Wide Dynamic Range: 120 dB True WDR

Night Vision: Smart IR, up to 40 m (131 ft)

Audio: Built-in microphone

Video Compression: Ultra 265, H.265, H.264, MJPEG

Image Settings: Saturation, brightness, contrast adjustable

Privacy Masking: Yes

Corridor Mode: Yes (9:16)

Storage: MicroSD slot, up to 256 GB

Network Protocols: TCP/IP, HTTP, DHCP, RTSP, ONVIF Profiles S/G/T

Power: PoE (IEEE 802.3af) / DC 12 V

Power Consumption: ≤ 8 W

Operating Temperature: -30°C to 60°C (-22°F to 140°F)

Operating Humidity: 0–95% RH

Weatherproof Rating: IP67

Housing Material: Metal

Dimensions (Ø × H): 109 × 85 mm (Approx.)

Weight: Approx. 470 g

Mounting: 3-axis adjustment (pan/tilt/rotate)

Certifications: CE, FCC, RoHS compliant
