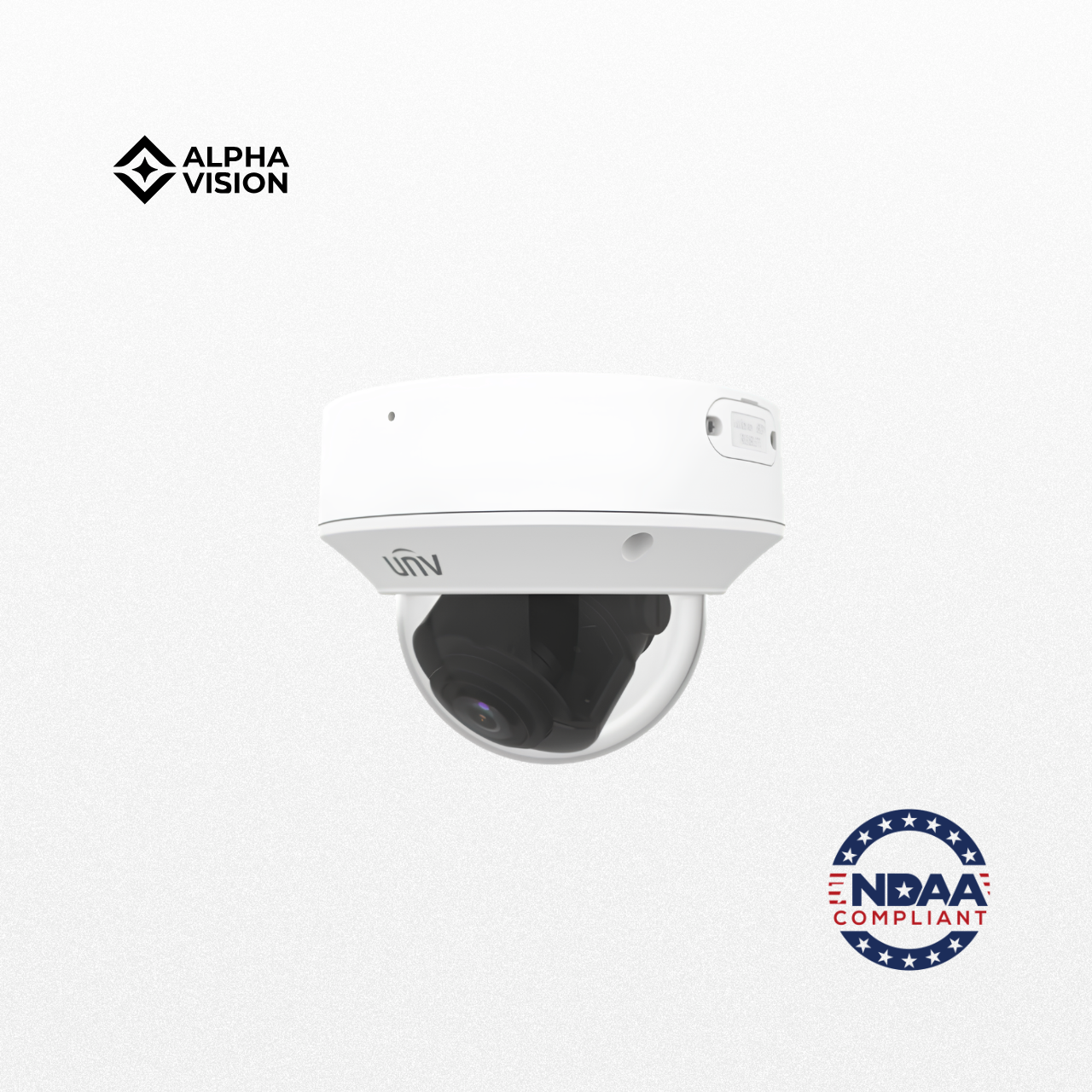

The Uniview IPC3238SB-ADZK-I0 is an advanced 8 MP LightHunter varifocal dome network camera designed for professional surveillance applications. Featuring a motorized 2.8–12 mm varifocal lens, LightHunter low-light enhancement, and Smart IR night vision up to 40 m, it delivers crisp, high-resolution imaging in varied lighting conditions. Intelligent perimeter protection with cross-line, intrusion, enter/leave area detection and false-alarm filtering helps ensure accurate alerts, while 120 dB True WDR enhances performance in high-contrast scenes. Built to withstand harsh environments with IP67 weatherproofing and IK10 vandal resistance, this camera is ideal for both indoor and outdoor use across commercial, industrial, and enterprise deployments. Edge storage with microSD support provides recording redundancy.

FAQs for

Is this camera suitable for outdoor use?

Yes. It is IP67 weatherproof and IK10 vandal-resistant, making it ideal for indoor or outdoor installations.

Does it support night vision?

Yes. Smart IR provides clear night vision up to 40 m (131 ft), with automatic IR adjustment to prevent overexposure.

Can the lens be adjusted remotely?

Yes. The camera features a motorized 2.8–12 mm varifocal lens for remote zoom and focus.

Does it support PoE?

Yes. It supports PoE (IEEE 802.3af) for power and data over a single Ethernet cable, as well as DC 12V.

Does it require an NVR?

An NVR is recommended for centralized recording and management. The camera also supports microSD edge storage up to 256 GB for backup recording.

Tech Specs for

Image & Sensor

  • Sensor: 1/2.8″ 8 MP Progressive Scan CMOS
  • Max Resolution / Frame Rate:
    8 MP (3840×2160) @ 20 fps
    5 MP @ 30/25 fps
    4 MP @ 30/25 fps
    1080p @ 30/25 fps
  • Minimum Illumination: 0.0025 lux (color, F1.6, AGC ON); 0 lux with IR on
  • Day/Night: IR-cut filter with auto switch global.uniview.com

Lens & Optics

  • Lens: Motorized varifocal 2.8–12 mm
  • Field of View: H: 107.4° – 29.2°; V: 54.2° – 16.3°; D: 111° – 33.1°
  • WDR: 120 dB True WDR
  • IR Range: Up to 40 m (131 ft) Smart IR global.uniview.com

Video & Compression

  • Compression: Ultra 265, H.265, H.264, MJPEG
  • Streams: Triple streams
  • Smart Functions: Cross line, intrusion, enter/leave area detection, people flow & crowd density monitoring
  • Image Enhancements: 2D/3D DNR, BLC, HLC, digital defog, privacy mask, ROI, flip/rotate, corridor mode

Audio & I/O

  • Built-in Microphone: Yes
  • Audio I/O: 1 input / 1 output
  • Alarm I/O: 1 input / 1 output global.uniview.com

Storage & Network

  • Edge Storage: MicroSD up to 256 GB
  • Network Protocols: IPv4/IPv6, TCP/UDP, RTSP, HTTP/S, FTP, DHCP, UPnP, SNMP, NTP, DDNS
  • ONVIF: Profiles S/G/T (compatible) Uniview Canada

Physical & Environmental

  • Weatherproof Rating: IP67
  • Vandal Resistance: IK10
  • Operating Temp: −30 °C to 60 °C (−22 °F to 140 °F)
  • Humidity: ≤ 95% non-condensing
  • Power: PoE (IEEE 802.3af) / DC 12 V
  • Dimensions: Φ148 × 111.4 mm
  • Weight: ~970 g
