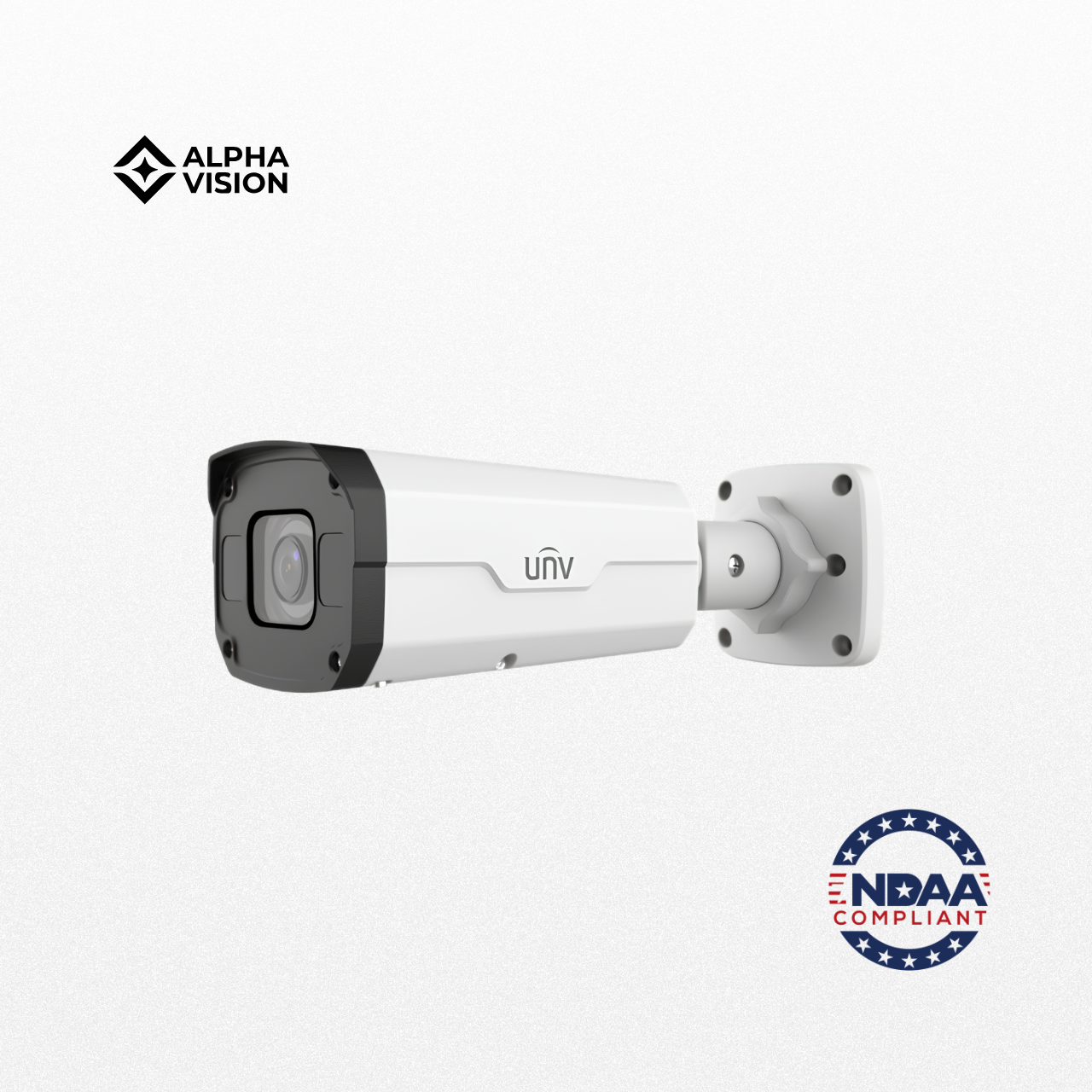

The Uniview IPC2328SB-DZK-I0 is an 8MP outdoor bullet network camera engineered for high-resolution, reliable surveillance in demanding environments. Equipped with a motorized 2.8–12 mm varifocal lens and LightHunter low-light technology, it delivers clear, detailed video around the clock. Advanced analytics such as Smart intrusion prevention and people flow/crowd density monitoring help reduce false alarms and provide actionable insights. Rugged IP67 and IK10-rated housing ensures dependable performance outdoors, while support for edge storage and PoE simplifies installation and operation.

FAQs for

What image quality does this camera provide?

The camera features an 8 MP, 1/2.8" CMOS sensor, delivering ultra-clear 4K video for detailed monitoring and reliable evidence capture.

What resolutions and frame rates are supported?

It supports multiple resolutions for flexible performance:

  • 8 MP (3840 × 2160) at 20 fps
  • 5 MP (3072 × 1728) at 30/25 fps
  • 4 MP (2560 × 1440) at 30/25 fps
  • 1080p (1920 × 1080) at 30/25 fps
Does the camera support intelligent analytics?

Yes. It includes smart intrusion prevention such as line crossing, intrusion, enter area, and leave area detection, with intelligent target classification that significantly reduces false alarms from leaves, birds, and lighting changes.

Can it track people flow and crowd density?

Yes. The camera supports intelligent people flow counting and crowd density monitoring, making it ideal for entrances, public areas, and operational analytics.

How does it perform in low-light or challenging lighting conditions?

With LightHunter technology, Smart IR up to 50 m (164 ft), and 120 dB true WDR, the camera delivers clear images in low-light, night-time, and high-contrast scenes.

Tech Specs for

Image & Video

  • Sensor: 1/2.8″ Progressive Scan CMOS
  • Resolution: Up to 8 MP (3840 × 2160) @ 20 fps
  • Codec: Ultra 265, H.265, H.264, MJPEG
  • WDR: 120 dB True WDR
  • Noise Reduction: 2D/3D DNR
  • Smart IR: Up to 50 m (164 ft)
  • Minimum Illumination: 0.0025 lux (color), 0 lux with IR

Lens & Optics

  • Lens: Motorized varifocal 2.8–12 mm
  • Field of View: 107.4°–29.2° (H)
  • Day/Night: IR-cut filter with auto switch
  • Corridor Mode: Yes (9:16) Uniview

Analytics & Intelligence

  • Smart Intrusion Prevention: Cross line, intrusion, enter/leave area detection
  • False Alarm Filtering: Classifies objects to reduce false alarms
  • People Counting & Crowd Density Monitoring Uniview

Storage & Network

  • Edge Storage: MicroSD up to 256 GB
  • Network Protocols: IPv4/v6, RTSP, NTP, FTP, UPnP, HTTPS, SNMP, and more
  • ONVIF: Profiles S, G, T supported Uniview

Physical & Environmental

  • Housing: Metal
  • Weatherproof: IP67
  • Vandal Resistant: IK10
  • Power: PoE (IEEE 802.3af) or DC 12 V
  • Operating Temp: -30°C to 60°C (-22°F to 140°F) Uniview

I/O & Connectivity

  • Ethernet: 1 × RJ45 10/100 Base-T
  • Audio I/O: 1 Input, 1 Output
  • Alarm I/O: 1 Input, 1 Output Uniview

Physical Dimensions

  • Size: 245 × 86 × 72 mm
  • Weight: ~0.92 kg
